Name: China Paper Mill Ceramic Dewatering Element Hydrofoil Manufacturers Suppliers Factory
Brand: Beichen
SKU: 250255030

Beichen Code: Hydrofoils

Features

Excellent water drainage performance for the paper making process

Support the forming fabric and guarantees the uniform level

High wear and abrasion resistant Alumina ceramics

Smooth surface and low friction for higher fiber using

Corrosion resistant steel box for low replacement and constant machine running

Grinding and repairing service available

Special designs can be manufactured upon request

Why BEICHEN hydrofoils

The energy consumption of dewatering in the forming section is much lower than the steaming drying.

The ceramic hydrofoils dewatering element is installed in the forming section to drain water from wet web and offer support and protection to the forming fabric. After long time of constant operation, the hydrofoils will be worn or damaged when attacked by the aggressive chemicals, abrasives or debris, the surface will be uneven. The uneven ceramic surface will cause paper defects and destroy the wet web. Following problems will increase running cost to the paper making machine, like spare parts replacement, machine pause and daily maintenance.

Ceramic dewatering hydrofoils supplied by Beichen are with higher wear and abrasion resistance performance, and smoother surface. This can guarantee the constant running of the paper making machine. Benefits will be gained by installing Beichen hydrofoils.

Product Specification

Product Name	Paper mill ceramic dewatering element hydrofoils
Mill Code	Hydrofoils
Category	Water drainage elements for paper making
Paper making machine type	Fourdrinier, Top former, Gap Former
Principle	Suction by gravity and air pressure
Product machine type	Paper, board, tissue,
Application	Paper forming, paper making, water drainage
Package	Wood cage packing
Material	corrosion-resistant steel, Alumina Ceramics
Sizes	OEM according to customer design
Strips	3 strips, 5 strips, 7 strips
Features	Smooth surface, low friction, wear resistant ceramics

Divided Design

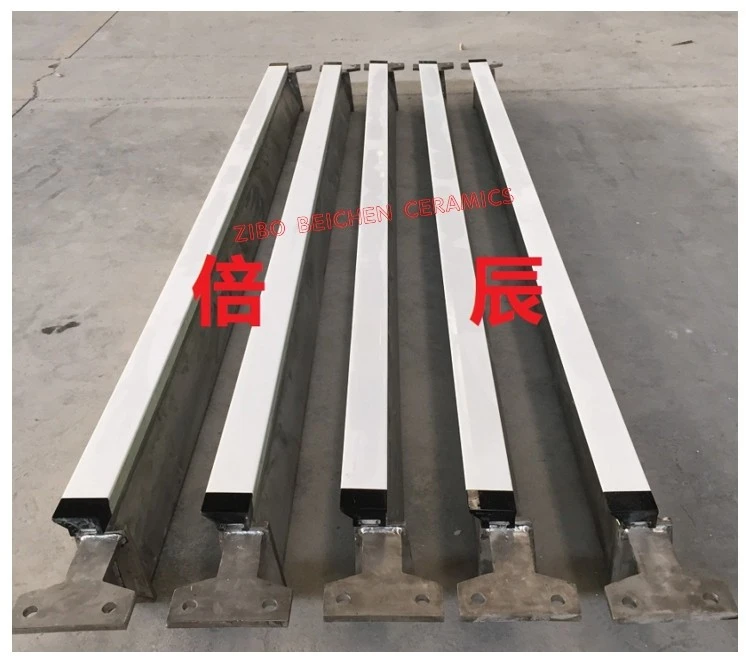

The ceramic dewatering element hydrofoils in the paper making machine consists of one corrosion-resistant steel box, FRP bars, and ceramic dewatering hydrofoil blades.

The corrosion-resistant steel box can be manufactured according to customer drawings in OEM.

FRP bars are with high strength for long-lasting use.

The ceramic dewatering hydrofoil blades can be replaced, regrinding for further using.

Number of strips can be 3, 5, or 7 Angles can be 0.5°, 1°, 1.5°, 2°, 2.5°.

Product Introduction

What is hydrofoil

The function of hydrofoils ("foils" for short) is to aid in removal of water from a wet web in the early stages of dewatering. On a Fourdrinier paper machine the foils are placed under the forming fabric. Their shape is designed to create suction as the foil and wet web pass over the surface. Hydrofoils also create a brief pressure pulse as the fabric passes over the leading edge. The alternating pressure and vacuum of a series of hydrofoils tends to move fibers around in the wet web, slightly improving the drainage and uniformity of the resulting paper. Also, the pulsation tends to change the drainage mechanism from pure filtration to a combination of filtration and thickening. The washing action of hydrofoils tends to remove fiber fines and fillers from the wire side(s) of a paper sheet. Another function of the hydrofoil is to doctor water from the under-side of the forming fabric.

Why installing hydrofoils

Paper formed by the forming boards contains massive water and fiber fines. The surface and thickness maybe uneven. Ceramic hydrofoils can help to remove the water in the leading edge and under-side of the forming fabric. Hydrofoils can be ground with angles for a more effective drainage performance. Fiber fines can be collected in the box and transferred to head box for reusing.

Main Function

The main key function of ceramic dewatering hydrofoil is to remove water from a wet web in the early stage of dewatering. It can also remove fiber fines for reusing.

How it works

The foils under the forming fabric is designed to create suction as the foil and wet web pass over the surface. Hydrofoils can create a brief pressure pulse as the fabric passes over the leading edge. The alternating pressure and vacuum of a series of hydrofoils tends to move fibers around in the wet web, slightly improving the drainage and uniformity of the resulting paper. Also, the pulsation tends to change the drainage mechanism from pure filtration to a combination of filtration and thickening. The washing action of hydrofoils tends to remove fiber fines and fillers from the wire side(s) of a paper sheet. Another function of the hydrofoil is to doctor water from the under-side of the forming fabric.

Insights of the design

The hydrofoils can be 3 striped, 5 striped, and 7 striped, the amount is determined by the comprehensive demands. Ceramic dewatering blades of hydrofoils are stitched on the RFP T-base and fixed on the corrosion resistant steel box.

Materials

Material for the water drainage box is corrosion-resistant steel.

Blade strips are in high wear resistant Alumina ceramic.

Hard strength FRP as the base for ceramic stitching.

Details regarding sale

Regarding the sales and delivery of ceramic dewatering element hydrofoils, we can serve the whole set equipment with previous assembled. Corrosion-resistant steel box, Alumina ceramic blades can also be supplied. The equipment is packed in wood box for road cargo and ship shipment.

Related Service

We can offer on sight measurement, material checking, and overall planning before purchase.

For the worn or damaged strips, we offer repair, replacement and regrinding.

Key process of the manufacturing of ceramic dewatering hydrofoils

Technical parameters of Beichen ceramic in the dewatering element

Performance	Unit	Alumina	SiC	SiN
Density	Kg/m³	3920	3210	3250
Mean flexual strength	Mpa	300	550	635
Edge toughness	N/nm	666	650	872
Weibull modulus		16	16	11
E Young's modulus	Gpa	324	429	314
Vickers hardness	Mpa	16.8	25	15
Fracture toughness	Mpa m 1/2	3.8	4.12	6.25
Thermal shock resistance	K	120	250	600
Thermal shock parameter	K	89	242	591
Surface finish	μm	0.35	0.25	0.25
Thermal conductivity	W/Mk	30	100	35
Mean grain size	μm	2--5	1	1--20

Why Choose Us

**Optimum solution for wide range product application

We offer a large selection of ceramic dewatering components for paper making machines that process paper, board, and tissue. We provide forming boards, flat suction boxes, hydrofoils, wet suction boxes, vacuum suction boxes, and felt suction boxes with premium Alumina, SiC, and SiN ceramics. Ceramic covers, blades, and even the FRP base are among the spare parts that can be provided.

**Strictly-selected raw materials

In order to maintain its competitiveness in the paper-making machinery market, Beichen chooses premium raw materials for all of its products, including high-purity Alumina powder, SiC and SiN ceramic, and ceramic dewatering elements.
The corrosion-resistant steel base with high strength FRP.
They serve as the cornerstone of Beichen Company and the basis for the production of goods.

**Know-how technology

Beichen possesses the technological know-how to produce superior hydrocyclone cleansers with both high and low density and light consistency. Professional ceramic dewatering element manufacturing is done at Beichen for various ranges.
We are aware of the consistency ranges, operating principles, and installation requirements for various pulp cleaner kinds. Additionally, we use the best technology available to create ceramic cones with good wear.
We are aware of the various varieties of forming boards, Hydrofoils, flat suction boxes, low vacuum suction boxes, high vacuum suction boxes, and felt suction boxes for the ceramic dewatering elements. Our knowledge of the properties of SiC, SiN, and alumina ceramics is extensive. Expert specialists who specialize in attaching and grinding are the assurance of superior ceramic coverings and blades.

**Skilled and focusing operation

Beichen concentrates on all production processes, including the selection of raw materials, cone isostatic pressing, CNC and hand grinding, ceramic attachment, CNC grinding of guide rails, and inspection.
This can ensure that all goods function for an extended period of time, assist clients in increasing overall production capacity, and lower operating costs.

**Strict Inspection

For every product, a thorough check is required prior to delivery.
We meticulously check the dimensions, composition, and technical requirements of all pulp cleaners, replacement parts, and ceramic dewatering components in accordance with the drawings.

**Comprehensive service

We provide service before and after sale, for providing better solutions to clients.

FAQS

Q: Is your business a trading company or a manufacturer?

A: Zibo Beichen Ceramics Apparatus Co.,Ltd was founded in the 1990s and has been a top producer of pulp cleaners, replacement parts, and ceramic dewatering elements for almost 30 years.

Q: Can I obtain a sample for free?

A: Not available, however replacement components can be provided for inspection

Q: Do you take small orders?

A: Indeed, we are eager to develop alongside you whether you are a builder, small retailer, or just starting out in company. And we're excited to collaborate with you on a long-term basis.

Q: What is your minimum order quantity?

A: One piece each of ceramic cones, blades, and a pair of ceramic dewatering cover, as well as one piece of the entire pulp cleaner

Q: How long is your delivery time?

A: Items in stock: 5-7 days. Products customized: 20-45 days.
We offer 100% on-time delivery from our two manufacturing mills and five sophisticated production lines.

Q: How do you ensure that the quality is met?

A: Every product must pass stringent testing methods before being delivered, starting with the selection of raw materials and continuing through manufacture, quality checking, packing, and loading.

Q: Can you handle OEM work?

A: Yes, we offer both OEM and ODM services. Your logo can be added to the product package by us.

Q: What more are you able to offer?

A: In addition, we offer a variety of high and low consistency pulp cleaner spare parts, ceramic dewatering boxes, covers, and blades.
